thermal imaging camera flir

Best price for thermal imaging camera flir

ATN PathFindIR With LE Aftermarket Kit NTSC Thermal Imaging Camera

Date: 2012.05.11 | Category: sporting goods | Response: 0

ATN PathFindIR With LE Aftermarket Kit NTSC Thermal Imaging Camera
With over 50,000 units fielded, the FLIR PathFindIR w/ LE Aftermarket Kit (NTSC) is the most reliable and affordable
Thermal Imaging Camera available today. This compact Thermal Imager that significantly reduces the hazards of nighttime driving. Automotive Night Vision Systems enable drivers to detect and monitor potential hazards on or near the road, allowing more time to react to any potential danger. This Thermal Imager helps the user to recognize pedestrians, animals or objects in total darkness, smoke, rain, snow. The FLIR PathFindIR w/ LE Aftermarket Kit (NTSC) module can be integrated into military vehicle designs or adapted for aftermarket commercial vehicle applications.
Detector type Focal Plane Array (FPA), uncooled microbolometer 324 x 256 pixels
Spectral range 8 to 14µm
Field of view 36° (H) x 27° (V) with 19 mm lens
Spatial resolution (IFOV) 2 mrad
Thermal sensitivity 100 mK at +25°C
Image frequency* 8.3 Hz PAL or 7.5 Hz NTSC *
Focus Automatic (25 m to infinity)
Image processing Digital Detail Enhancement (DDE)
Time to image < 2 seconds
Automatic Heater When window temperature is below +4°C
Video output RS170 EIA/NTSC or CCIR/PAL composite video, 75?
Connector types BNC, with optional pigtail cable
Requirements 6 - 16 V DC
Consumption 2 W quiescent, 6 W max (with window heater on)
Operating temperature range -40°C to +80°C
Storage temperature range -57°C to +105°C (Extended storage time above +40°C is not recommended due to reduction in service life)
Humidity 6,500 hours at 81%rh at +25°C and salt spray per IEC 60068-2-11Ka
Sand/dust Mil-Std810
Icing Heater will defrost 2 mm of ice within 15 minutes at -30°C and wind speed of 100 km/h
Encapsulation Hermetically sealed enclosure
Shock 5 30g shocks in 2 directions on 3 axes (30 total) 11 mSec duration per IEC 60068-2-27Ea
Vibration IEC 60068-2-64
Camera Weight 360 grams
Camera Size 57.4 mm x 56.1 mm x 71.4 mm excluding connector which protrudes an additional 28.7 mm

CHECK PRICE NOW!
Read Full Review >>

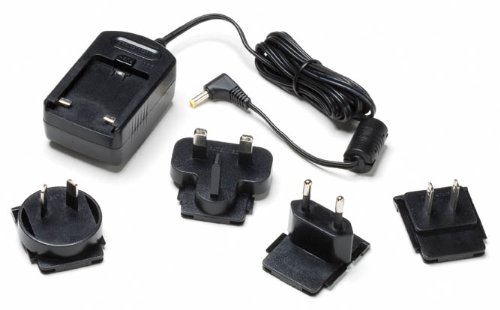

FLIR T910814 100/240 VAC Power Supply charger with AU/EU/UK/US plugs for FLIR E30, FLIR E40, FLIR E50, FLIR E60, FLIR E30bx, FLIR E40bx, FLIR E50bx, FLIR E60bx, FLIR T620 Compact Infrared Thermal Imaging Cameras

Date: 2012.03.29 | Category: consumer electronics | Response: 0

FLIR T910814 100/240 VAC Power Supply charger with AU/EU/UK/US plugs for FLIR E30, FLIR E40, FLIR E50, FLIR E60, FLIR E30bx, FLIR E40bx, FLIR E50bx, FLIR E60bx, FLIR T620 Compact Infrared Thermal Imaging Cameras
FLIR T910814 100/240 VAC Power Supply charger with AU/EU/UK/US plugs for FLIR E30, FLIR E40, FLIR E50, FLIR E60, FLIR E30bx, FLIR E40bx, FLIR E50bx, FLIR E60bx, FLIR T620 Compact Infrared Thermal Imaging Cameras

CHECK PRICE NOW!
Read Full Review >>

FLIR B400 Bldg Thermal Imaging IR Camera 320 x 240 Resolution/30Hz

Date: 2012.03.24 | Category: home lighting accessory | Response: 0

FLIR B400 Bldg Thermal Imaging IR Camera 320 x 240 Resolution/30Hz

CHECK PRICE NOW!
Read Full Review >>

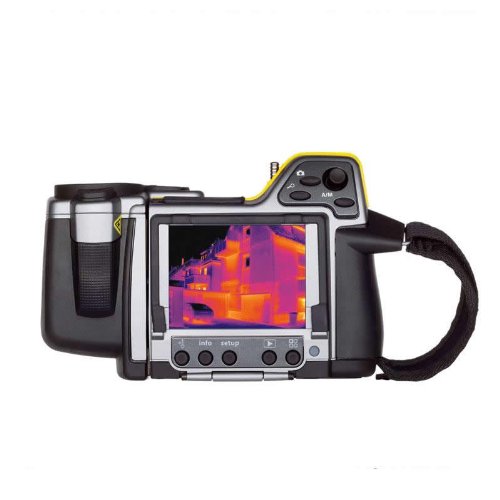

FLIR 45306-0201 model FLIR B300 High-Sensitivity Infrared Thermal Imaging Camera 320 x 240 IR Resolution, Measures Temperature to 248°F (120°C), 2X Continuous Zoom

Date: 2012.03.20 | Category: consumer electronics | Response: 0

FLIR 45306-0201 model FLIR B300 High-Sensitivity Infrared Thermal Imaging Camera 320 x 240 IR Resolution, Measures Temperature to 248°F (120°C), 2X Continuous Zoom
FLIR 45303-0202 model FLIR B300 – High Resolution IR Images – 76,800, Visible Light Digital Camera – 3.1M, 2X Continuous Zoom, Rotating Lens, Insulation Alarm, Dew Point Alarm, Scalable Picture in Picture (PIP) Fusion, Video Lamp, Temperature Range, ± 2% Accuracy, Thumbnail Image Gallery, Li-Ion Rechargable Battery, Copy to USB, Laser LocatIRTM Pointer, IR Window Correction, Voice Comment Recording, Wireless Communication – SPECIFICATIONS: Temperature range -4°F to 248°F (-20°C to 120°C); Optional Higher Temperature available,
Image Storage 1000 radiometric JPEG images (SD card memory), Frame Rate 30Hz, Field of view/min focus distance 25° x 19°/1.31ft (0.4m), Focus Manual/Automatic, Thermal sensitivity (N.E.T.D) <0.05°C at 30°C, Detector Type - Focal plane array 320 x 240 pixels, (FPA) uncooled microbolometer, Spectral range 7.5 to 13?m, Display Built-in touch-screen 3.5" color LCD, Image modes Thermal/Visual/Picture-in-Picture Fusion, Image annotation Voice (60 sec); text comments, Lens 25° (optional 6°, 15°, 45°, 90°, Close up 100, 50, 25?m lenses available), Video Lamp Bright LED lamp, Laser Classification/Type Class 2/Semiconductor AlGalnP Diode Laser: 1mW/635nm (red), Set-up controls Mode selector, color palettes, configure info to be shown in image, local, adaptation of units, language, date and time formats, and image gallery, Measurement modes 5 Spotmeters, 5 Box areas, Isotherm, Auto hot/cold spot, Delta T, Measurement correction Reflected ambient temperature & emissivity correction, Battery Type/operating time Li-lon/ >4 hours, Display shows battery status, Charging system In camera AC adapter/2 bay charging system, Shock 25G, IEC 68-2-29, Vibration 2G, IEC 68-2-6, Dimensions/Weight 4.2×7.9×4.9″ (106x201x125mm)/1.94lbs (0.88kg) including battery

CHECK PRICE NOW!
Read Full Review >>

FLIR 55901-0102 model FLIR T620 High-Resolution Infrared Thermal Imaging Camera, 640 x 480 IR Resolution, Measures Temperature to 1202°F (650°C), 4X Continuous Zoom

Date: 2012.03.07 | Category: surveilance systems | Response: 0

FLIR 55901-0102 model FLIR T620 High-Resolution Infrared Thermal Imaging Camera, 640 x 480 IR Resolution, Measures Temperature to 1202°F (650°C), 4X Continuous Zoom
FLIR 55901-0102 model FLIR T620 High-Resolution Infrared Thermal Imaging Camera – High Resolution IR Images – 307,200 pixels (640 x 480) Infrared resolution, Visible Light Digital Camera – 5MP, 4X Continuous Zoom, Rotating Lens, Scalable Thermal Fusion, Scalable Picture in Picture (PIP), Video Lamp, High Temperature Range, ± 2% Accuracy, Thumbnail Image Gallery, Li-Ion Rechargable Battery, Laser LocatIRTM Pointer, IR Window Correction, Voice Comment Recording, Wireless Communication, Instant Report, Digital Video, Video Streaming, Wi-Fi Connectivity, Programmable Button, Interchangeable Optics -SPECIFICATIONS: Temperature range -4°F to 1202°F (-20°C to 650°C), Image Storage 1000 radiometric JPEG images (SD card memory), Imaging Performance/Image Presentation, Frame Rate 30Hz, Field of view/min focus distance 25° x 19°/9.8″ (0.25m), Focus Manual/Automatic, Thermal sensitivity (N.E.T.D) <0.05°C at 30°C, Detector Type - Focal plane array (FPA) uncooled microbolometer 640 x 480 pixels, Spectral range 7.8 to 14?m, Display Built-in touch-screen 4.3" color LCD, Image modes Thermal/Visual/Picture in Picture/Fusion, Image annotation Voice (60 sec); text comments, Sketch, Lens 25° (optional 15° Telephoto, 45° Wide Angle lenses available), Video Lamp Bright LED lamp, Laser Classification/Type Class 2/Semiconductor AlGalnP Diode Laser: 1mW/635nm (red), Set-up controls Mode selector, color palettes, configure info to be shown in image, local, adaptation of units, language, date and time formats, and image gallery, Measurement modes 10 Spotmeters, 5 Box areas, Isotherm, Auto hot/cold spot, Delta T, Measurement correction Reflected ambient temperature & emissivity correction, Battery Type/operating time Li-lon/ >3 hours, Display shows battery status, Charging system In camera AC adapter/2 bay charging system, Shock 25G, IEC 68-2-29, Vibration 2G, IEC 68-2-6, Dimensions/Weight 5.6×7.7×3.7″ (143x195x95mm)/2.87lbs (1.3kg) including battery, UPC: 845188001452

CHECK PRICE NOW!
Read Full Review >>

e30 Compact Thermal Imaging Infrared Camera with Thermal Sensitivity of <.10°C and 160 x 12

Date: 2012.02.01 | Category: camera other accessories | Response: 0

e30 Compact Thermal Imaging Infrared Camera with Thermal Sensitivity of

CHECK PRICE NOW!
Read Full Review >>

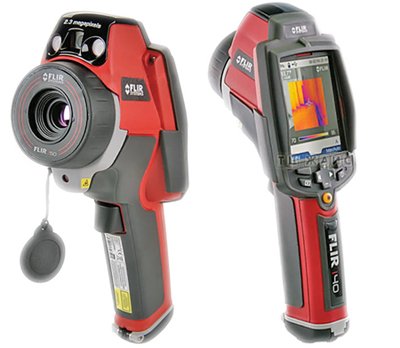

Flir 39903-1501 model i40 Lightweight Infrared Thermal Imaging Camera, 120 x 120 IR Resolution, Measures Temperature to 662°F (350°C)

Date: 2012.01.21 | Category: raw materials | Response: 0

Flir 39903-1501 model i40 Lightweight Infrared Thermal Imaging Camera, 120 x 120 IR Resolution, Measures Temperature to 662°F (350°C)
Flir 39903-1501 model i40 Lightweight Infrared Thermal Imaging Camera, 120 x 120 IR Resolution, Measures Temperature to 662°F (350°C) – IR Image Resolution – 14,400 pixels (120 x 120) Infrared resolution, Visible Light Digital Camera – 0.6M, Picture in Picture (PIP) Fusion, Bright LED Lights, Wide Temperature Range, ± 2% Accuracy, Thumbnail Image Gallery, Li-Ion Rechargable Battery, Copy to USB, Laser LocatIRTM Pointer, IR Window Correction, Area (Min/Max) Mode, 0.1°C @ 25°C Thermal Sensitivity, Bright LED Lights, Picture-in-Picture Fusion, 3.5″ Razor Sharp color LCD Display, Lighweight (1.3lbs), Area Min/Max Spot Marker, Analysis/Reporting Software included – SPECIFICATIONS: Temperature range -4°F to 662°F (-20°C to 350°C), Image Storage >1000 radiometric JPEG images (SD card memory), Imaging Performance / Image Presentation: Frame Rate 9Hz, Field of view/min focus distance 25° x 25°/3.9″ (0.1m), Focus Manual (Minimum focus distance 1.3ft/0.4m), Thermal sensitivity (N.E.T.D) <0.1°C at 25°C, Detector Type - Focal plane array (FPA) uncooled microbolometer 120 x 120 pixels, Spectral range 7.5 to 13?m, Display Built-in 3.5" color LCD, Image modes Thermal/Visual/Picture-in-Picture Fusion (Fixed), Video Lamps Bright LED lamps, Laser Classification/Type Class 2/Semiconductor AlGalnP Diode Laser: 1mW/635nm (red), Set-up controls Mode selector, color palettes, configure info to be shown in image, local adaptation of units, language, date and time formats, and image gallery, Measurement modes 1 Spotmeter (Center spot), 1 Box area (full image with min/max), Measurement correction Reflected ambient temperature & emissivity correction, Battery Type/operating time Li-lon/ >5 hours, Display shows battery status, Charging system In camera AC adapter/2 bay charging system, Shock 25G, IEC 68-2-29, Vibration 2G, IEC 68-2-6, Dimensions/Weight 9.3×3.2×6.9″ (235x81x175mm)/<1.32lbs (600g) including battery

CHECK PRICE NOW!
Read Full Review >>
